MAIN WELDER FEATURES

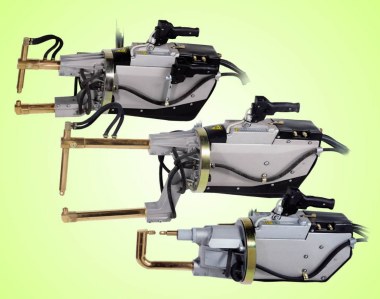

• Pneumatic operated suspended gun, with integrated TE300 or TE450 microprocessor welding control unit.
• High productivity achieved with rational design, reduced dimensions, high welding capacity.
• High electric efficiency.
• Reduced installation costs.
• Totally enclosed, rubber protected for easy and safe operation.
• Gyro suspension on sealed bearings together with a spring balancer guarantees accurate manoeuvrability at any degree.
• Rotation locking device.
• Large selection of arms, enabling to set-up the welder according to the work exigencies.
• Chrome-copper electrode-holders for heavy duty and long life, designed for both straight and angled assembling.
• Adjustable electrodes distance, adjustable short working stroke for heavy duty.
• Temporary extra stroke to reach the areas to be welded.
• Long working stroke to weld reinforcement ribs, jobs in areas difficult to be reached.
• Water-cooled transformer, with epoxy resin coated windings.
• Water cooled arms, electrode-holders and electrodes.
• Synchronous SCR contactor insulated from cooling water circuit with protection thermostat.
• Oiless chromium plated cylinder and shaft for heavy duty operation and long life.
